High Gray Scale 22bit+
Quick Installation, Convenient Delivery
Support HDR High Dynamic Range Display
| Specification and Models | ALLINK 108 | ALLINK 135 | ALLINK 162 |
|---|---|---|---|

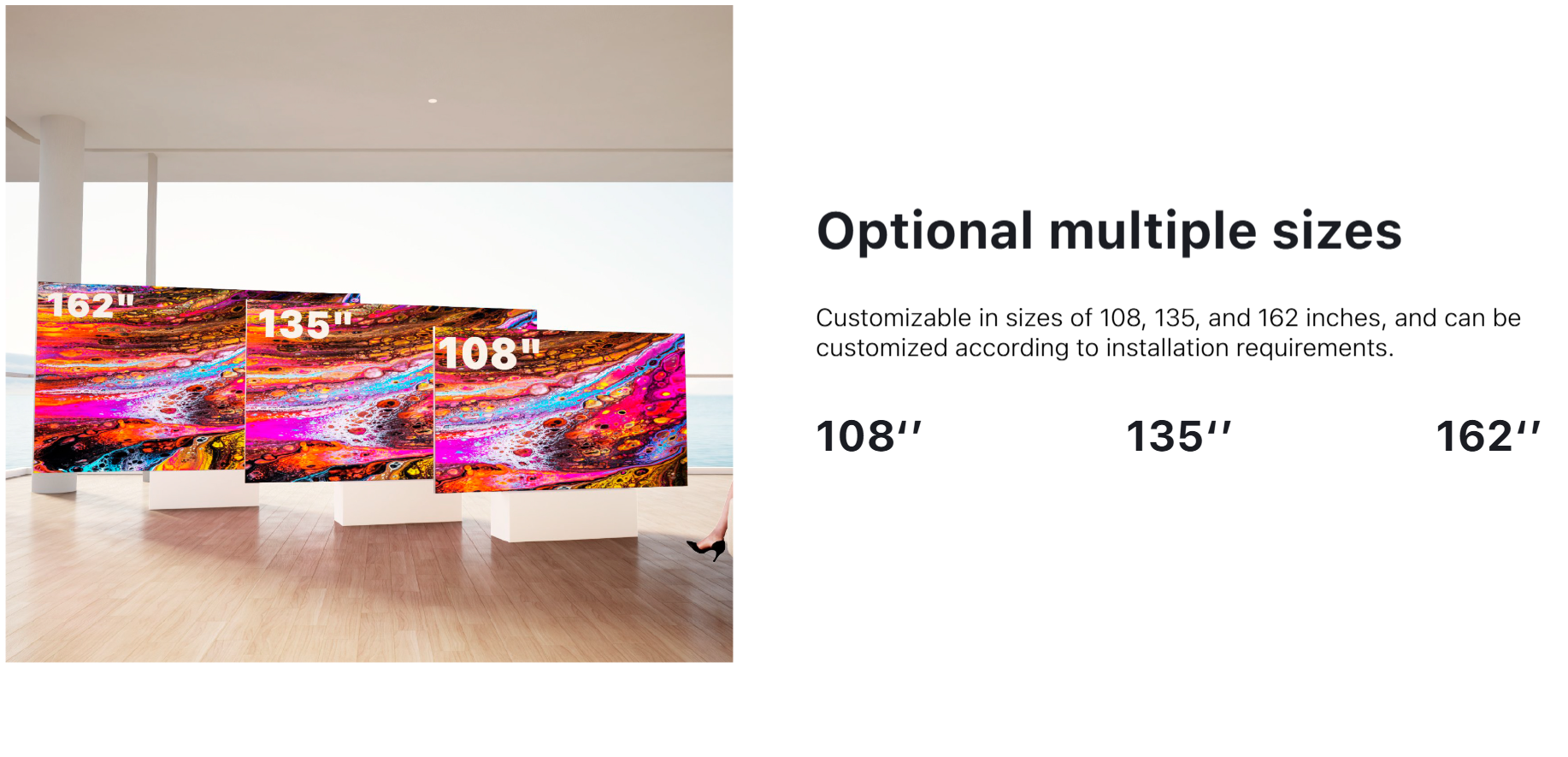

| Display Size | 108 Inch | 135 Inch | 162 Inch |
| Display Size (W*H) | 2400*1350mm | 3000*1687.5mm | 3600*2025mm |
| Dimensions (W*H*D) | 2412*1362*193mm | 3012*1699.5*193mm | 3612*2037*192mm |
| Resolution | 2K / 1920*1080 /16:9 | 2K / 1920*1080 /16:9 | 2K / 1920*1080 /16:9 |

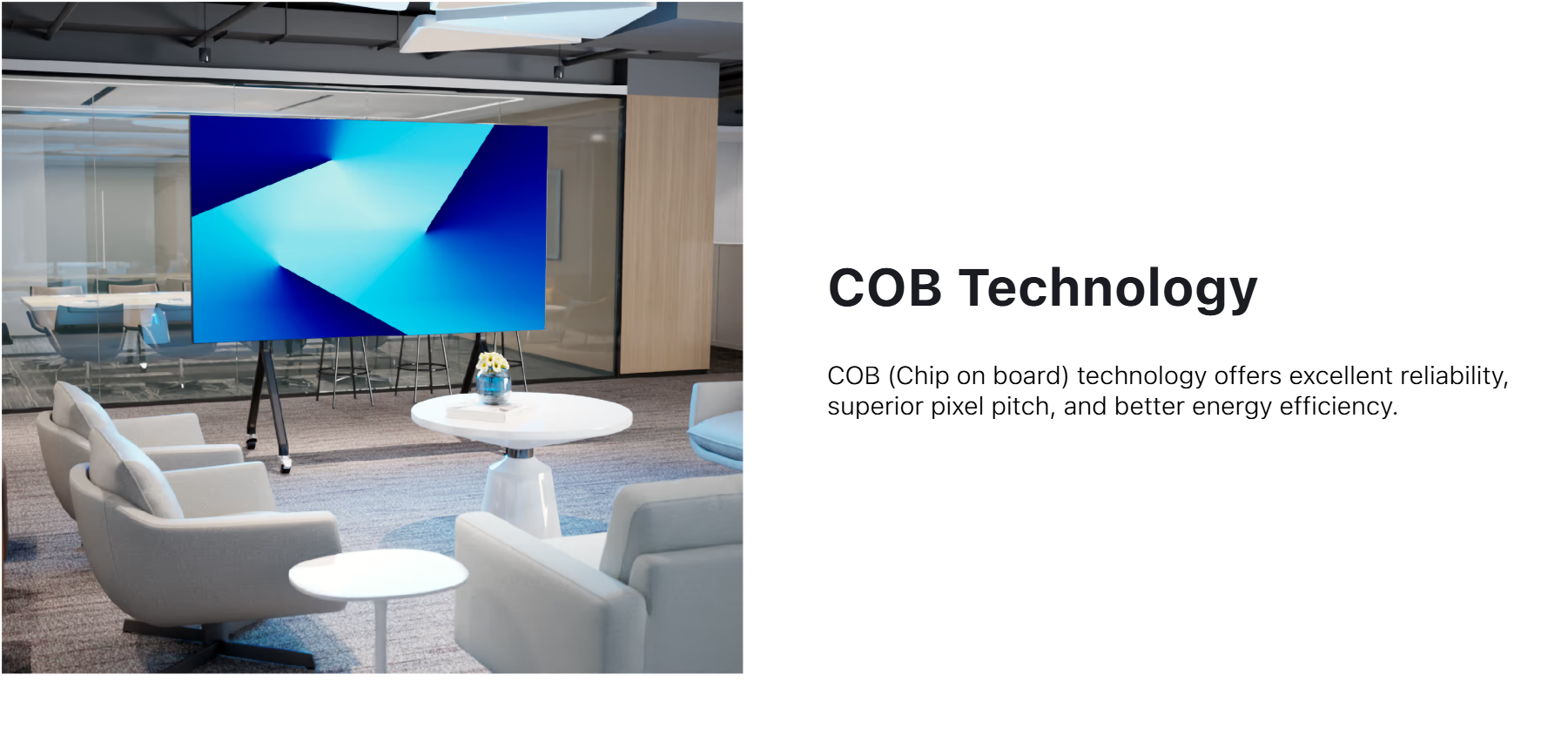

| Panel Technology | Full Flip-Chip COB | ||
| Communication Port | 2G / 4G/ 5G / WIFI/ Bluetooh | ||

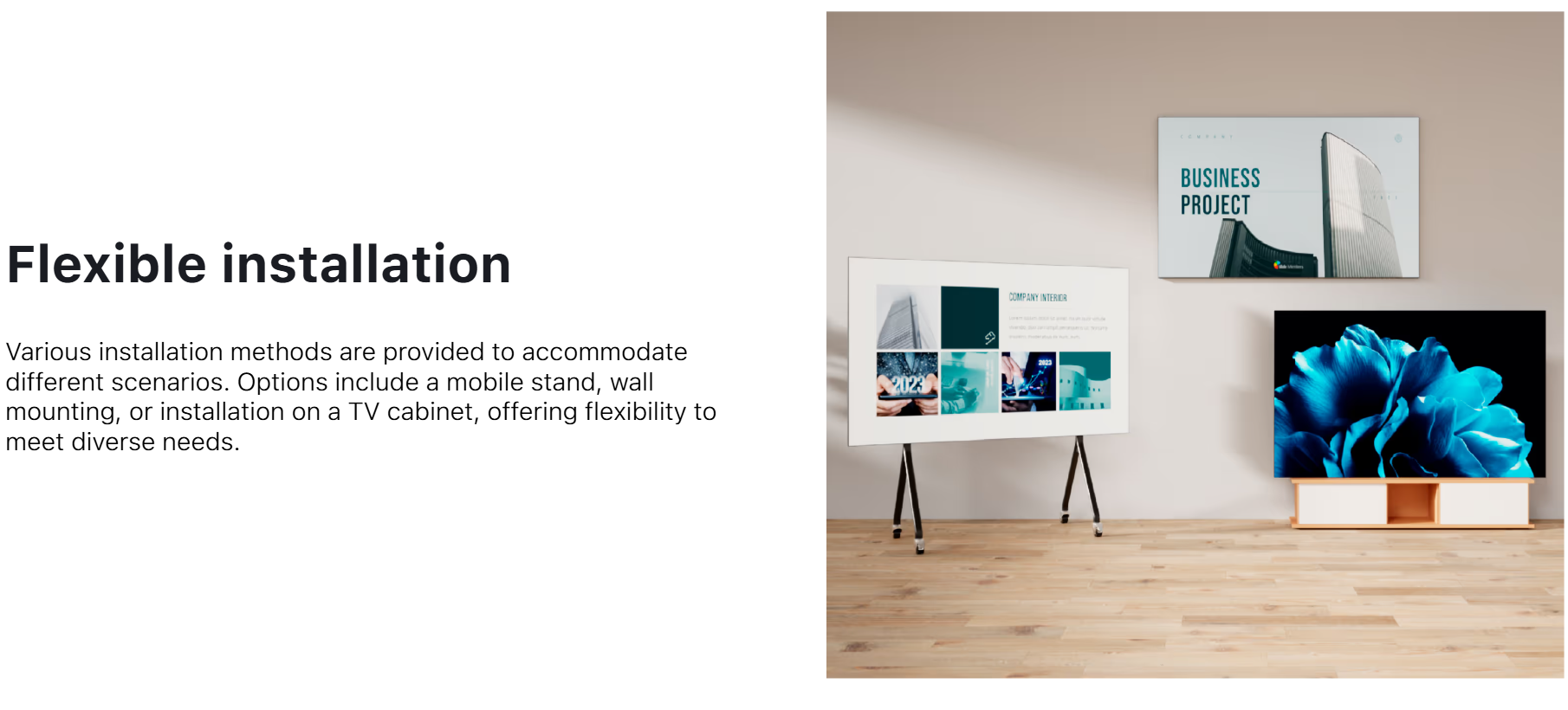

| Installation Method | Foot Mounting / Wall Mounting | ||
| Max Power Consumption | 1500W | 2300W | 3300W |
| Ave Power Consumption | 500W | 800W | 1000W |
| Brightness(nits) | ≥600 | ≥600 | ≥600 |
| Contrast Ratio | 10000:1 | ||
| Colour Temperature(K) | 7500K(adjustable) | ||
| Frame Rate(Hz) | 60 | ||
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 |
| Working Voltage | AC:100~240V,50/60Hz | ||
| Power Consumption Max(W/m²) | ≤300 | ≤250 | ≤420 |
| Power Consumption AVG(W/m²) | ≤100 | ≤85 | ≤140 |
| Viewing Angle(H./V.) | 170°/170° | ||
| Lifetime (Hours) | 100000 | ||
| Operating Temp(C) | -10~+50 | ||
| Humidity Range(%RH) | 10~80 | ||
